Wagon Appreciation Pt 4: Berjaya Motors (Mazda & Skoda)

In this blog entry, I'll be posting Wagon Appreciation Part 4: Berjaya Motors.  Why Berjaya Motors?
Because it's the DISTRIBUTOR of Mazda (Bermaz) and Skoda (Quasar Carriage) cars in Malaysia.  I will be covering 4 wagons:

1) Mazda 6 Wagon

2) Skoda Superb Combi Wagon
3) Skoda Octavia Combi Wagon
4) Skoda Fabia Combi Wagon.

There's a saying a picture's worth 1000 words.  Without further ado, let's proceed to the photos:

1) Mazda 6 Wagon:

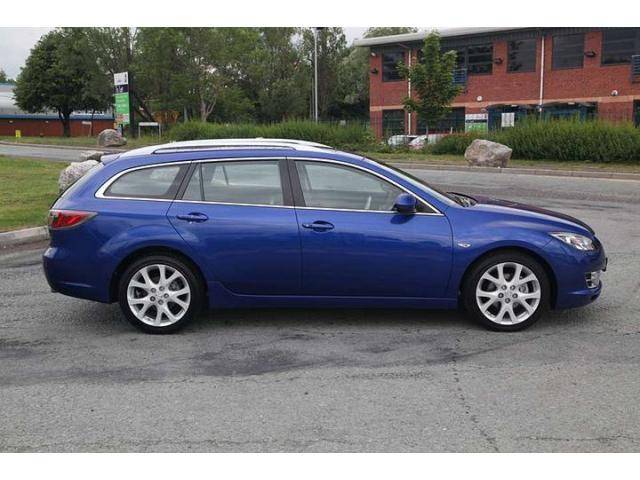

EXTERIOR:


If you need the practicality, space and flexibility of a wagon, you usually need to compromise on style. The Mazda6 wagon is the perfect solution with its stylish, sporty exterior design and brilliant versatility. Available in Classic, Touring or Diesel models (In Australia), it is a spacious wagon with the luxury of a sedan. A highlight of the Mazda6 wagon is its handy ‘Karakuri’ seats and tonneau cover that fold down with the flick of a wrist to make the most of its ample storage space - even when you have your hands full.

The Mazda 6 Wagon is available in 2 engine/gearbox Combo.
1) 4 cyl 2.5 MZR - SVT 16v with 5 speed Activematic gearbox
2) 4 cyl 2.2 MZR - CD Commonrail Diesel Turbo with 6 speed Manual only.

INTERIOR AND ENGINE:

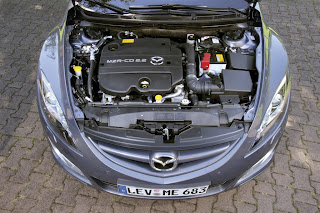

Above: Petrol 2.5 S-VT (as seen in Sedan), Below: MZR-CD 2.2 Diesel engine.


SPECIFICATIONS:

SPECIFICATION:

powertrain       Touring    Diesel
Engine type     2.5 litre in-line 4 cylinder 16 valve DOHC S-VT   /
2.2 litre in-line 4 cylinder 16 valve DOHC intercooled turbo diesel
Engine capacity     2,488 cc    /  2,183 cc
Bore and stroke     89.0 mm x 100.0 mm   /   86.0 mm x 94.0 mm
Compression ratio     9.7 : 1   /    16.3: 1
Maximum power     125 kW @ 6,000 rpm    /   132 kW @ 3,500 rpm
Maximum torque     226 Nm @ 4,000 rpm    /    400 Nm @ 1,800-3,000 rpm
Throttle control     Electronic (drive-by-wire)  /    Electronic (drive-by-wire)
Fuel system     Electronic port fuel injection    /  Common-rail electronic direct injection
Fuel tank capacity     64 litres  /  64 litres
Recommended fuel     Regular unleaded (min. 91 RON)  /   Diesel (ultra low sulphur)
Fuel consumption man (combined)1    -    -    5.9 litres per 100km
Fuel consumption auto (combined)1    8.9 litres per 100km
Emissions standard     Euro stage IV     Euro stage IV
Manual transmission     -    -    6-speed
Activematic (auto) transmission     5-speed
Gear ratio 1st - man/auto......- / 3.620     3.538 / -
Gear ratio 2nd..................... - / 1.925     1.913 / -
Gear ratio 3rd.....................- / 1.285     1.218 / -
Gear ratio 4th.................... - / 0.933     0.880 / -
Gear ratio 5th ................... - / 0.692     0.809 / -
Gear ratio 6th............................- / -     0.711 / -
Gear ratio reverse.............. - / 3.405     3.831 / -
Gear ratio final drive..........- / 3.863     3.611 (1st-4th) / - 3.095 (5th-6th) / -

chassis......................     Touring    Diesel
Brake diameter front      299 mm  /  299 mm
Brake diameter rear       280 mm  / 280 mm
Brake type front     Ventilated disc  /   Ventilated disc
Brake type rear       Solid disc   /  Solid disc
Steering type      Electric power assist steering   /  Electric power assist steering
Suspension front      Double wishbone
Suspension rear    Multi-link
Turning circle kerb to kerb    11.0 m  /  11.0 m
Tyre size     215/50 R17 91W   /   215/50 R17 91W
Wheel size     17 x 7.0 J    /    17 x 7.0 J
Wheel type ............Alloy   /   Alloy
Wheel type (spare)     Full size   /     Full size


dimension...................... Touring    Diesel
Ground clearance laden    122 mm  / 122 mm
Overall height     1,490 mm    /    1,490 mm
Overall length     4,765 mm   /    4,765 mm
Overall width     1,795 mm  /  1,795 mm
Track front    1,550 mm    /    1,550 mm
Track rear    1,550 mm    /   1,550 mm
Wheelbase     2,725 mm  /   2,725 mm
Cargo room volume (VDA)    519 litres   /  519 litres
Cargo room volume (VDA)6    1,751 litres   /  1,751 litres
Kerb weight man        -    1,594 kg
Kerb weight auto     1,521 kg
Towing capacity braked    1,500 kg  /  1,500 kg
Towing capacity unbraked    550 kg  /  550 kg


exterior       Touring    Diesel
Aerial printed into rear glass
Body kit comprising: aero bumper (front)
Body kit comprising: aero bumper (rear)
Body kit comprising: integrated side skirts
Body kit comprising: rear spoiler
Exhaust extensions (chrome)
Fog-lamps (front)
Front and rear bumpers (body coloured)
Green-tinted windscreen, side and rear windows
Headlamps (Halogen)
Metallic/Mica paint
Power mirrors (body coloured)
Power windows
Roof rails
Tail-lamps (LED)

interior......Touring..........Diesel

12 volt power outlet
Air-conditioning (dual-zone climate control)
Ambient temperature display
Bluetooth® (hands-free compatible) 2
Cargo area tie-down hooks
Cargo area tonneau cover with 'Karakuri' up and down function
Cargo net
Centre armrest console (sliding)
Critical function warning lights/chimes
Cruise control
Cupholders
Digital clock
Door courtesy lamps (front)
Door map pockets (front)
Driver's left footrest
Glasses storage compartment
Glove box (lockable and illuminated)
Headlamps auto on/off function
Illuminated entry system with delayed fade
Instrument panel light dimmer
Interior illumination: cargo room lamp
Interior illumination: ignition key surround
Interior illumination: map reading spot lamps
Interior illumination: power window switch (driver)
Interior release for fuel filler door
Leather-wrapped: steering wheel
Lights-left-on audible warning
Low fuel warning light
Passenger assist grips (front and rear)
Seat trim: cloth        -
Seat trim: leather
Seats (front) with: 3-position memory function (driver)       Yes    -
Seats (front) with: 4-way power adjustment (passenger)       Yes    -
Seats (front) with: 8-way power adjustment (driver)        Yes    -
Seats (front) with: adjustable head restraints
Seats (front) with: height adjustment (driver)
Seats (front) with: lumbar adjustment (driver)
Seats (front) with: rake and slide adjustment
Seats (front) with: seat back pocket (passenger)
Seats (rear) with: 60/40 split fold backrest (flat fold)
Seats (rear) with: adjustable head restraints
Seats (rear) with: centre fold down armrest
Tachometer and electronic odometer/tripmeter
Tilt and telescopic adjustable steering wheel
Trip computer (current and average fuel consumption, distance to empty, average vehicle speed and speed alert)
Vanity mirrors (front) with illumination
Ventilation pollen filter
Window demister (rear)
Wiper (rear) with intermittent function
Wipers (front) 2-speed with rain-sensing function

audio.............Touring..........Diesel

AM/FM tuner
Auxiliary input (3.5mm MP3 player compatible)
Bluetooth® audio (MP3 player compatible) 2
CD player, in-dash 6-disc (MP3 compatible)
Speakers, number of         6     6
Steering wheel mounted audio controls

safety      Touring  /  Diesel

Active head restraints (front)
Airbags SRS: front (driver and passenger)
Airbags SRS: side (front)
Airbags SRS: curtain (front and rear)
Anti-lock Braking System (ABS)
Child restraint anchor points
Childproof rear door locks
Day/night rear vision mirror
'Double lock' door deadlock function
Dynamic Stability Control (DSC)
Electronic Brake-force Distribution (EBD)
Emergency Brake Assist (EBA)
Engine immobiliser
High mount stop lamp
Hill launch assist         -  /  Yes
Intrusion-minimising brake pedal
Intrusion-minimising clutch pedal        -  /  Yes
Left-hand-side convex (wide angle) exterior mirror
One touch (up and down) power window (driver)
Parking sensors (front & rear)         Yes  /  -
Remote central locking (2 transmitters with retractable key)
Seat-belt warning audible and visual (front)
Seat-belts 3-point lap-sash (all seats)
Seat-belts (front) with pretensioners, load-limiters and height adjustable shoulder anchorages
Side impact door beams
Traction Control System (TCS)
'Triple H' safety construction with front and rear crumple zones

-END OF SPECIFICATIONS-

2) SKODA SUPERB COMBI WAGON:
Skoda Superb Estate - luxurious and practical car.

SOURCE: http://www.skodablog.com/category/skoda-superb-estate

The new Skoda Superb Estate is set to become both the most luxurious and most practical car ever to wear the famous winged arrow badge.

Trim levels and engine choices will mirror those of the Skoda Superb hatchback with S, SE and Elegance models available along with the same range of three petrol and three diesel engines. All engines, from 1.4 TSI, 1.8TSI to 3.6 V6 are equipped with direct fuel injection for optimum fuel efficiency, performance and low emissions. With a choice of manual or twin-clutch DSG gearboxes linked to either two- or four-wheel drive, there's a Skoda Superb Estate to suit everyone's needs.

Not to be outdone by the hatchback's innovative Twin Door tailgate (above), the Skoda Superb Estate's boot - the biggest in its class - has its fair share of neat touches too. All models are fitted with a pair of lights built into the tailgate to illuminate not only the load bay but also the area around the rear of the car. A third, LED light in the boot can be removed all together and used as a torch and, thanks to its magnetic body, mounted to the car's body.

The tailgate itself has an optional power-operated function while the integrated luggage cover automatically retracts when the boot is opened. Customers can also specify the variable floor which extends over the rear bumper to help with awkward loads. Those who choose SE or Elegance will further benefit from a load partition and tethering system provided in the boot as standard. And if the Skoda Superb Estate's cavernous load bay (633 litres with the rear seats in place, 1,865 litres seats down) still isn't big enough, all models are fitted with roof rails as standard. (Black roof rails on S and chrome roof rails on SE and Elegance).

To make life even easier, an optional keyless entry and starting system (KESSY) is available for the first time on a Skoda, while passengers in all five of the Skoda Superb Estate's spacious seats will enjoy the natural light offered by the new two-piece electric panoramic sunroof (Below).

Here are the pictures:

EXTERIOR:

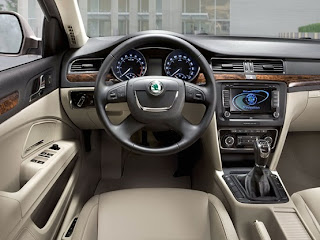

INTERIOR:


Above: SKODA LOGO.

3) SKODA OCTAVIA 1.8TFSI / 2.0vRS

EXTERIOR:


INTERIOR:


SPECIFICATIONS:
Skoda Octavia Combi 1.8 TSI Elegance (Note Superb Combi Wagon uses the Same engine with the same Fuel Economy, but marginally less performance.  2km/h and 0.2 seconds slower respectively for top speed and 0-100km/h.)

General

Doors number: 5-doors

Carbody type: wagon

Transmission: 6 Speed DSG Dual Clutch Gearbox

Cylinders     4
Valves     16 v
Engine power     160 bhp @ 5000rpm
Engine torque     184 lbs/ft (250Nm @ 1800rpm)
Engine size      1798 cc
Fuel type     Petrol
Number of doors     5
Number of seats     5

CO2 emissions     155 g/km

Front brakes: ventilated discs, 280 mm

Rear brakes: discs, 260 mm

Tire: 195/65R15

Turning circle: 10,2 m


EXTERIOR SIZES

Length: 4569 mm

Width: 1769 mm

Height: 1450 mm

Weelbase: 2578 mm

Front track: 1541 mm

Rear track: 1514 mm

Luggage space: 580-1730 l

Fuel tank: 55 l

WEIGHTS

Empty mass: 1315 kg

Maximum permisible mass: 2000 kg

Performance and Economy

Top speed: 222 km/h

Acceleration 0-100 km/h: 7,9 s

Urban consumption: 9,1 l/100km

Extra-urban consumption: 5,4 l/100km

Average comsumption: 6,6 l/100km


CO2 Emmision: 155 g/km


Safety:
3 point front seat belts
3 rear 3 point seatbelts + pretensioners
Curtain airbags
Driver and passenger airbags
Driver and passenger side airbags
ESP inc ABS, MBA, MSR, ASR, EDL, HBA
Height adjustable front seatbelts + pretensioners
Hill hold control
Passenger airbag deactivate switch
Alarm with interior monitoring and backup alarm horn
Anti-theft wheel bolts
Electronic immobiliser
Remote central locking with SAFE system

ALSO CONSIDER BRINGING IN

THIS MODEL:

As above except:

Skoda Octavia Combi 2.0 TSI vRS

Engine

Cylinders: 4, in line

Valves per cylinder: 4

Capacity: 1984 cc

Bore x stroke: 82,5 x 92,8 mm

Compression: 10,5:1

Transmission: 6 speed DSG Dual Clutch Gearbox

Max power: 147 kW (200 hp) @ 5100 rpm

Max torque: 280 Nm @ 1800 rpm

Fuel system: direct injection

Engine type: dohc

Turbo: yes, with intercooler

Performance

Top speed: 237 km/h

Acceleration 0-100 km/h: 7.2 s

Urban consumption: 10,4 l/100km

Extra-urban consumption: 6,2 l/100km

Average comsumption: 7,7 l/100km

CO2 Emmision: 180 g/km

END OF SPECIFICATIONS...

3) SKODA FABIA COMBI WAGON:

EXTERIOR:


INTERIOR:

Above: Boot space expanded from 480L to 1460L when split folded. Below: Excellent front and rear legroom.

Specifications:

Recommended Engine: 1.2TSI 105hp,
7 speed DSG twin clutch gearbox.

Skoda Fabia Combi 1.2 TSI 77kW Elegance (YUP, 1200cc TSI (Turbo with Intercooler), cheap road tax, frugal, yet powerful.  Berjaya should bring in this model.  Niche market - Supermini Wagon = No competitors.  If you think it looks gawky & cannot sell, please consider bringing in the Hatchback version (Picture below))

General

Release Date: May 2010 (Note, NEW Engine, just launched 2 months ago)

Doors number: 5-doors

Carbody type: wagon

Transmission: 7 speed, DSG Dual Clutch gearbox

Fuel: petrol

Performance

Top speed: 190 km/h

Acceleration 0-100 km/h: 10,3 s

Average comsumption: 5,3 l/100km

CO2 Emmision: 124 g/km


Engine

Cylinders: 4, in line

Valves per cylinder: 4

Capacity: 1197 cc
Bore x stroke: 71,0 x 75,6 mm

Compression: 10,0:1

Max power: 77 kW (105 hp) @ 5000 rpm

Max torque: 175Nm @ 1550 rpm

Fuel system: multipoint injection

Engine type: dohc

Turbo: yes, with intercooler

Catalyst: regular

Front brakes: discs, 288 mm

Rear brakes: discs, 232 mm

Tire: 195/55R15

Turning circle: 10,0 m


EXTERIOR SIZE
Length: 4247 mm

Width: 1642 mm

Height: 1498 mm

Weelbase: 2451 mm

Front track: 1417 mm

Rear track: 1410 mm

OTHERS:

Luggage space: 480-1460 l

Fuel tank: 45 l

WEIGHTS

Empty mass: 1109 kg

Maximum permisible mass: 1639 kg

SAFETY:

ABS
Driver and passenger airbags
Driver and passenger side airbags
Driver's seatbelt undone warning light
MSR + ASR + ESP + Dual rate
Passenger airbag deactivate switch
Tyre pressure monitor
Alarm with tilt sensor
Immobiliser
Remote central locking

END OF SPECIFICATIONS.

The reason I create this blog entry is to LURE Berjaya Motors to import in AT LEAST 2 of the 4 models above (eg. Skoda Superb Combi and Mazda 6 Wagon), though I hope they can bring in ALL of the ABOVE.

If Berjaya Motor (under Quasar Carriage) have NO PLAN to bring in Skoda Wagons, AT LEAST BRING IN Fabia Hatchback, Octavia Hatchback vRS TSI AND Superb Hatch-Sedan PLEASE!

That's all folks, thanks for having the time and patience to read this blog entry.

(MISSING PHOTOS WILL UPLOAD BY 11pm tonight).  ALL Pictures uploaded 2207hrs

No comments:

Post a Comment



blogger templates | Blogger
